Product Details:
Payment & Shipping Terms:
|
| Capacity: | 60kg Each Batch | Heating Power: | 9kw |
|---|---|---|---|
| Heating Method: | Electricity/gas/steam | Voltage: | 380v/50hz/3phase |
| Baking Trays: | 24pcs | Trolly Quantity: | 1set |
| Dimension: | 1380*1200*2000 | Application: | Fruits,vegetable,meat,other Food |
| High Light: | industrial dehydrator machine,stainless steel food dehydrator |
||

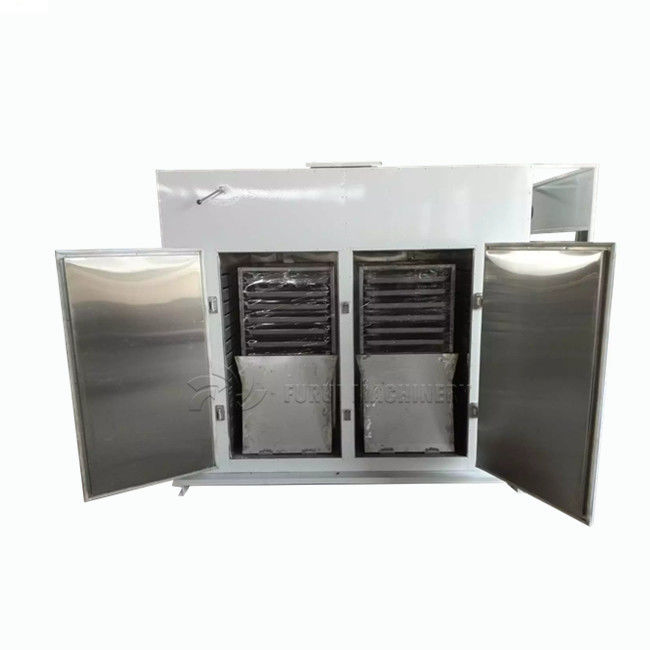

fruit and vegetable drying machine/Dehydrator machine
Summary
1.The drying machine is hot air circulation drying oven with low noise,high temperature resistant axial flow fan and automatic temperature control system.
2. The fruit drying machine whole cycle system fully enclosed, make the thermal efficiency of the oven from 3-7% increase to the current 35-45%, the highest thermal efficiency may reach 50%.
3. fruit dryer save a lot of energy, improve the economic efficiency of enterprises.
Work principle
1.The drying machine with low noise, high efficiency axial fans, forced hot air in the box Carried out within the cycle, thereby enhancing the heat transfer, and to improve the energy utilization. The entire
cabinet is a fully enclosed structure, hot air circulates inside, and reasonable discharge of hot and humid air, and up into the fresh air Gas. Can be installed according to the customer process requirements damp exhaust outlet check valve, temperature loggers, work timing and other devices.
2. The drying equipped with automatic temperature control system,The inside temperature is uniform. Energy-saving fan with low noise, running balance, greatly reducing the set Prepared by the noise. Air inlet with a high efficiency air filter. Outlet with the efficiency air filter. Body wall full welding arc transition, no dead ends, and easy to clean.
Technical parameter
| Model | Capatity each batch | Power | Baking trays | Trollys | Diemension(mm) |
| FR-D | 30kg | 6kw | 16 | 1 | 1380*1100*1750 |
| FR-D1 | 60(kg) | 9kw | 24 | 1 | 1380*1200*2000 |
| FR-D2 | 120(kg) | 15kw | 48 | 2 | 2260*1200*2000 |
| FR-D3 | 240(kg) | 30kw | 96 | 4 | 2260*2200*2000 |
| FR-D4 | 360(kg) | 45kw | 144 | 6 | 2260*3200*2000 |
1. Packing: PP film wrapped around the machine and carefully packed in wooden case to focus on protecting damageable parts.
2. Shipping: From port of Shenzhen, Shanghai, Qingdao, Guangzhou,etc. We also accept land, air, sea transport and international multimodal transport.
3. Clearance: Our long history makes us the one of the first and most knowledgeable providers of the equipment, our main customers hail from; Canada, the United States, Brazil, Argentina, Japan, Philippines, Australia, Russia, Thailand, the UAE, Poland, Spain, Germany, India, etc.
1. We always welcome customers to visit our manufacturing factory and get to know more about us.
2. Customers can see all the manufacturing workflows when they visit our factory.
3. We also send engineers to the customer's place to help with the installation!
1. After-sale service:
We provide 12 months' warranty(After the warranty, we can provide life-long repair service).
2. Customization:
We make customized commercial drying machine.
